Mechanical Structure & Quality Check & Other Technologies
![Mechanical Structure & Quality Check & Other Technologies](https://www.mucteba.net/wp-content/uploads/2019/10/Clipboard-23-Eylül-2019-17_49-800x587.png)
To obtain high quality and standarts we have used 3D Laser scanning, Plasma Treatment, conducted some structural and irradiance analyzes.
In this section, I will show the method of quality checks and technology we have used in Battery Pack.
Color scale represents the differences in mm.
![](https://www.mucteba.net/wp-content/uploads/2019/10/Clipboard-23-Eylül-2019-17_49-1024x751.png)
Our aim was to achieve 200 microns of tolerances in the battery pack. This is an Image of our Battery pack 3d laser scanning.
![](https://www.mucteba.net/wp-content/uploads/2019/10/Clipboard-23-Eylül-2019-17_33-1024x662.png)

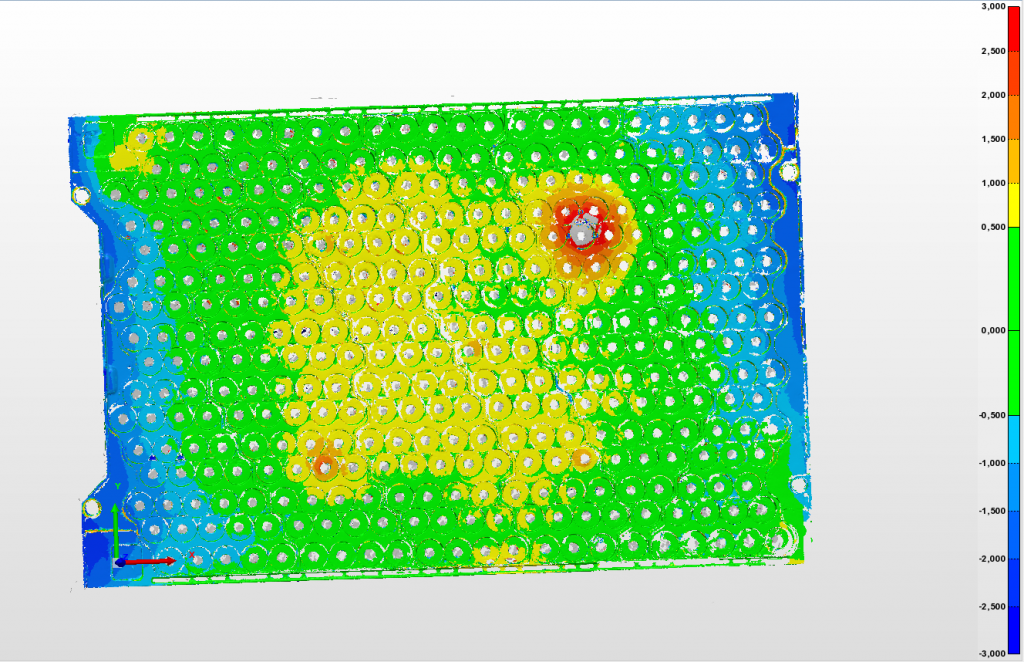

We have seen the low points and high points in holder designs and made some changes according to the scanning results.
![](https://www.mucteba.net/wp-content/uploads/2019/10/UVanaliz-1.png)
Irradiance result of a Holder, under a certain distance from a light source to the holder.
![](https://www.mucteba.net/wp-content/uploads/2019/10/20191021_152535-1-e1572205238681-498x1024.jpg)
Plasma treatment before applying adhesive.
![](https://www.mucteba.net/wp-content/uploads/2019/12/20191219_163618-e1576826945359-498x1024.jpg)
Thermally searching the excess heat points and changed the busbar designs according to the data. 196A is drawn in the photo.
